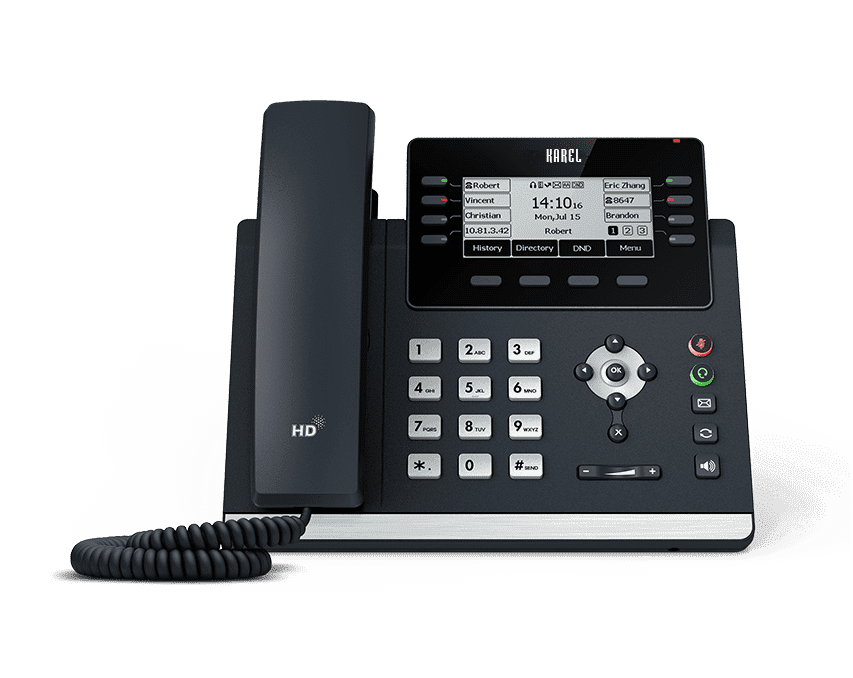

Designed for busy executives and professionals, Karel IP133G with HD Voice quality and Gigabit support communicates with Karel IPBXs or other SIP compatible products via SIP protocol. The IP133G phone is an ultimate communication tool that has the better overall performance.

• Dual-port Gigabit (10/100/1000 Mbps) Ethernet support
• POE support
• HD Voice support
• 3.7" 360x160-pixel graphical LCDwith backlight
• 12 VoIP accounts
• Headset, USB Headset, USB recording

Audio Features

• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Acoustic Shield
• Codecs: AMR-WB (optional), AMR-NB (optional), Opus, G.722, G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Display and Indicator

• 3.7" 360x160-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number and photo
• Power saving

Phone Features

• 12 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening
• Emergency call
• Redial, call return, auto answer
• 5-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan, XML Browser, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• USB port (2.0 compliant)
• Enhanced DSS key

Directory

• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Busy Lamp Field (BLF)
• Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Executive and Assistant
• Call park, call pickup
• Centralized call recording, call recording
• Visual voice mail

Management

• Configuration: browser/phone /auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Broadsoft device management
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE

Feature keys

• 8 line keys with LED
• 8 line keys can be programmed up to 21 paperless DSS keys (3-page view)
• 5 features keys: message, headset, mute, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• 2 volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface

• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 2
• 2 x USB port (2.0 compliant)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port

Other Physical Features

• Stand with 2 adjustable angles
• Wall mountable
• External AC adapter (optional): AC 100~240V input and DC 5V/1.2A output
• USB output currency: 5V – 1A
• Power consumption (PSU): 0.9 – 2.2W
• Power consumption (PoE): 1.5 – 3.2W
• Dimension (W*D*H*T): 224.9mm*206.2mm*174.9mm*52mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C
